產品簡介:

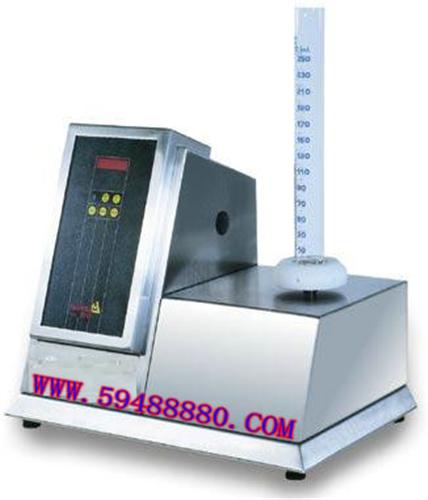

振實密度計， ，美國藥典、歐洲藥典、德國藥典等標準。
250ml／100ml 量筒，LED 顯示
振動次數， 自動控制。
振動頻率： 250 ± 10 次/分鐘
振動高度：3.0 ± 0.1 mm
振動次數： 1-9999 之間可調。
可測6個參數： 流動性，流動時間， 休止角 ，密度，體積， 流動性重量曲線。
結果可液晶顯示。
RS 232 接口和打印機接口。
TDJK1/PTG-S3 Powder Testing System to test 6 different powder characteristisc, flow-time, cone angle, flowability acc. toEP/DAB pharmacopoeia, cone density, cone volume, powder flow chart. The PTG S3 system includes a built-in Sartorius precision balance cell, maximum range 510 g, 1 mg resolution and a built-in thermo printer. The user is guided by a LCD display through the operation task, foil cover alpha numerical keyboard to enter test descriptions, operating program selection, RS-232 data interface and printer port, incl. 100 ml powder funnel, 1 set of pouringnozzles 6,8,10 mm, powder receipt and overflow receiptplate, EP conical stainless steel funnel, 10,15 and 25 mmpouring nozzle and stirrer insert, instrument suitable ，erform flowability test according to EP/DABpharmacopoeiaTest program and measuring ranges:
- cone angle: 0.5° - 45.0°
- flow time: 0.1s to 1 h
- adjust funnel opening time: 1 s - 10 min.
- flowability: 100.0 g of powder- density: 0.001 g/ml - 9.999 g/ml
- volume: 0.1 ml - 999.0 ml
- powder weight flow chart: 0.1 g - 500 G
|
|
